ELECTROSCREED

Two Component Dielectric Insulation High Voltage Resistant Self Smoothing Epoxy Floor Screed

ELECTROSCREED

Overview

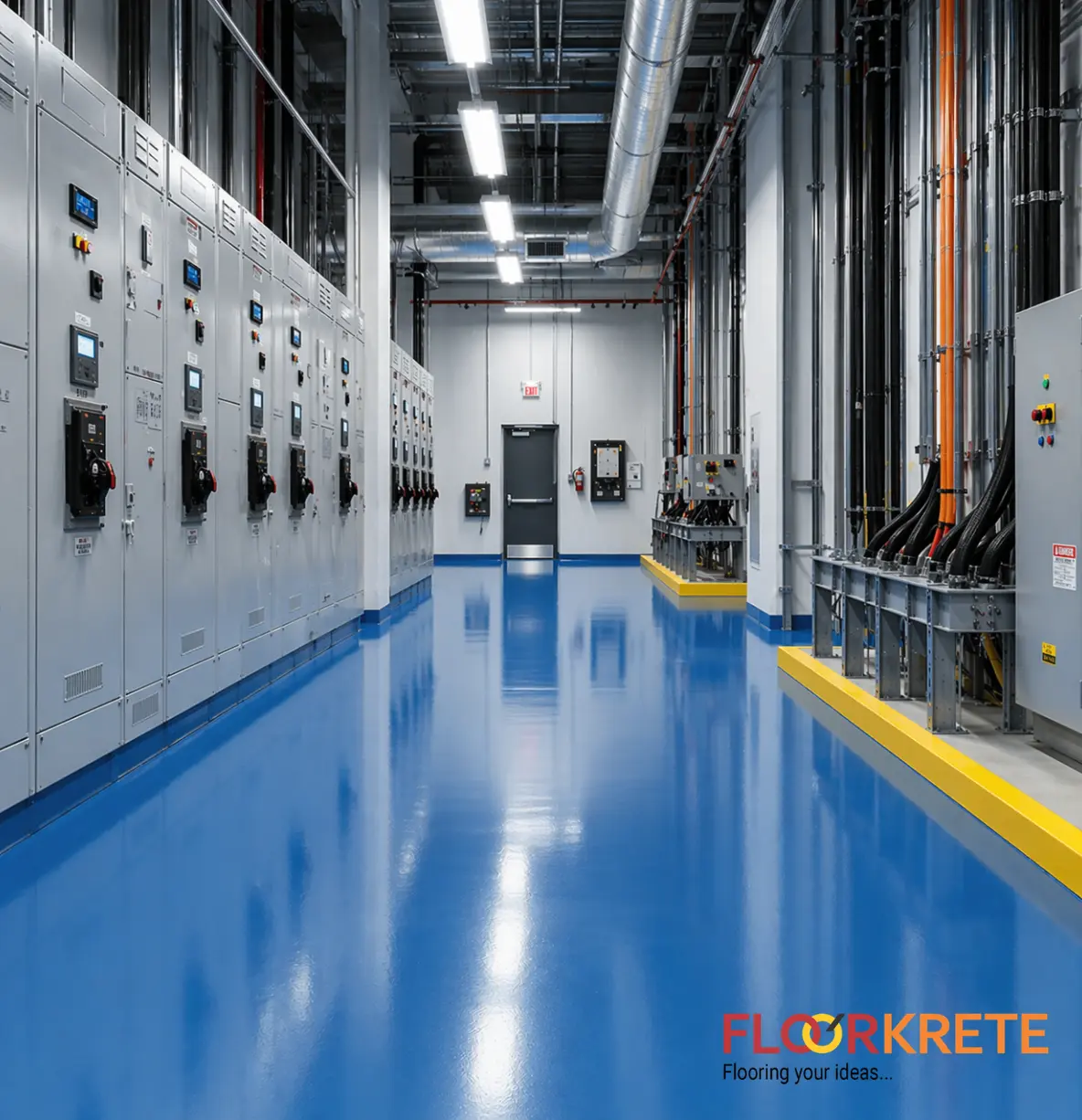

Electroscreed is a two-component, epoxy-based, self-leveling dielectric floor coating. Applied at 1 mm thickness and available in a wide range of colors, it is resistant to acids, alkalis, and solvents. Once applied, the product protects workers from electrical hazards in control panel rooms and other areas. Electroscreed is a high-performance, solvent-free epoxy floor screed that provides a hard-wearing finish where a high level of dielectric voltage breakdown is required.

For More Info call us: +91-9323890195 Contact
  • Advantage
  • Specification Clause
  • Technical Data
  • Project Profile
  • Download

Advantage

  • High dielectric strength and insulation resistant,
  • High bond  strength with concrete floors,
  • Less than 0.1% porosity
  • Seamless and hygienic surface,
  • Abrasion resistance,
  • Easy to apply being composite pack.

Specification Clause

  • Breakdown voltage: >22.4 KV
  • Dielectric Strength: >20 KV/mm
  • Touch Dry Time: 2-5 Hours
  • Shore D Hardness: 70-75
  • Bond Strength: >4.0 MPa (Concrete Breaks)
  • Min. Working Temperature: 25°C
  • Coverage, Kg/m2/mm: 1.3 to 1.4
  • Compressive Strengh: >45 N/mm2
  • Flexural Strength: >20 N/mm2

Technical Data

  • Type: Self Smoothing Dielectric Epoxy Floor Coating
  • Uses: Electrical & electronics facilities, control panel rooms, transformer rooms, LT/HT laboratories, Industrial plants, Metal-treatment plants, production areas, Waste & utility areas
  • Colour Available: Light Grey, Light Blue, Green, Signal Yellow, Dark Red
  • Method of Application: Through notch trowel
  • Packing: 20.8 Kg composite pack

Project Profile

Project profile coming soon!

Download

To access TDS, click here
