In electronics assembly, cleanrooms, and automated data centers, uncontrolled electrostatic discharge (ESD) presents a critical operational risk. While human skin may only feel static shocks above 3000 V, ultra-sensitive semiconductor microchips, circuitry, and volatile chemical vapors can suffer catastrophic failure from discharges as low as 20V to 100V.
Unlike temporary surface-applied anti-static waxes or standard vitrified tiles that insulate and accumulate charge, dedicated ESD flooring systems provide a seamless, permanent network that bleeds static electricity safely into an earth grounding point.
ESD System Classifications: Dissipative vs. Conductive
Electrostatic control flooring is classified based on its Electrical Surface-to-Ground Resistance, typically measured in accordance with ANSI/ESD S7.1, ANSI/ESD S20.20, or IEC 61340 standards.
| System Parameter | Static Dissipative Flooring | Static Conductive Flooring |
|---|---|---|
| Surface Resistance (Rg) | 106 Ω – 109 Ω (1 MΩ – 1 GΩ) | 103 Ω – 106 Ω (1 kΩ – 1 MΩ) |
| Primary Mechanism | Slowly drains static charges at a controlled rate to prevent rapid sparking. | Immediately grounds static charges across the conductive plane. |
| Target Facilities | Printed Circuit Board (PCB) assembly lines, cleanrooms, QA testing laboratories, server rooms. | Munitions storage, explosive chemical handling plants, defense manufacturing facilities. |
| System Build Thickness | 1.5 mm – 2.0 mm | 1.5 mm – 2.0 mm (Self-smoothing resin matrix) |

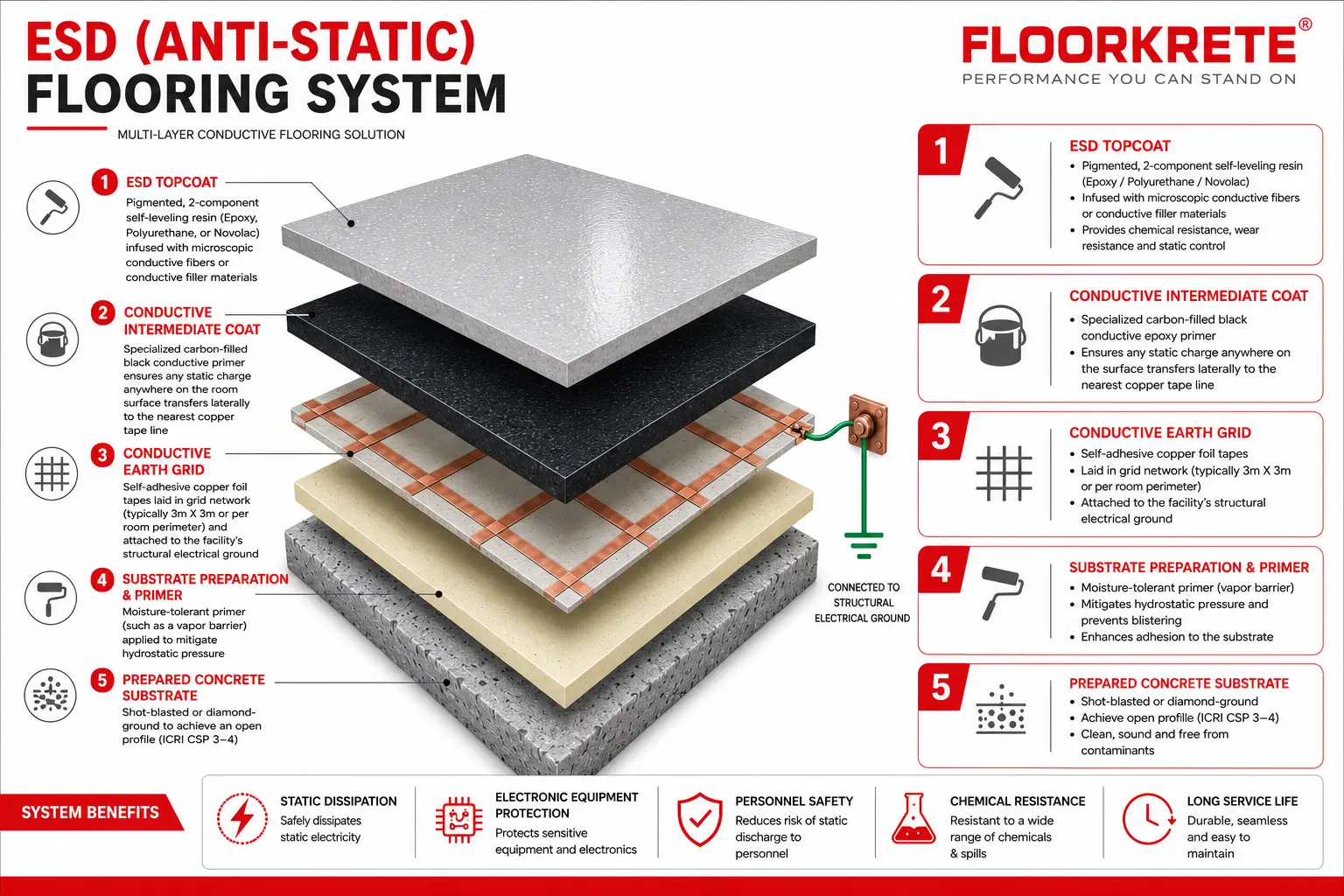

Anatomical Build of a High-Performance ESD Epoxy System
An effective ESD floor relies on a multi-layer composite system rather than a single paint coat:
Substrate Preparation & Primer: The concrete slab is shot-blasted or diamond-ground to achieve an open profile (ICRI CSP 3–4). A moisture-tolerant primer (such as a vapor barrier) is applied to mitigate hydrostatic pressure.
Conductive Earth Grid: Self-adhesive copper foil tapes are laid out across the primed slab in a grid network (typically spaced every 3m X 3m or per room perimeter) and attached to the facility’s structural electrical ground.
Conductive Intermediate Coat: A specialized carbon-filled black conductive primer is applied over the grid. This ensures that any static charge anywhere on the room surface transfers laterally to the nearest copper tape line.
ESD Topcoat: A pigmented, 2-component self-leveling resin (Epoxy, Polyurethane, or Novolac for additional chemical resistance) infused with microscopic conductive fibers or conductive filler materials is troweled to the specified thickness.
Core Engineering Benefits
Zero Dusting & Hygienic Isolation: Provides a completely seamless, joint-free finish that prevents particle accumulation in critical cleanrooms.
High Mechanical Strengths: Delivers compressive strengths exceeding 60 N/mm² and high abrasion resistance under continuous forklift, pallet truck, and foot traffic.
Chemical Resistance: Protects underlying concrete against industrial solvents, hydraulic fluids, and chemical spills common in electronics manufacturing.
Consistent Cross-Sectional Conductivity: High-grade ESD resins maintain electrical conductivity throughout the entire thickness of the matrix, meaning surface wear does not degrade static dissipation performance.
Critical Quality Control & Failure Prevention
ESD floors fail primarily due to improper design or installation rather than material failure. Standard quality assurance protocols include:
Moisture Emission Testing: High MVER (Moisture Vapor Emission Rate) causes osmotic blistering, which breaks the bond between the conductive primer and concrete slab.
Substrate Resistance Verification: Surface-to-ground (Rg) and surface-to-surface (Rs) resistance measurements must be verified with megohmmeters using standard weighted megohm probes per ANSI/ESD S7.1 post-cure.
Footwear-System Synergy: To achieve full ANSI/ESD S20.20 compliance ( <35 MΩ system resistance), operators walking across ESD floors must wear conductive heel straps or ESD-compliant footwear.
